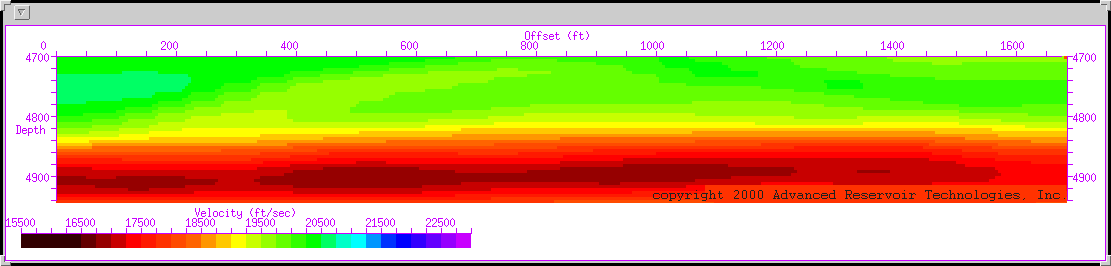

Compressional Wave Tomogram

Showing Location of CO2 in the Reservoir


Simplified Velocity Color Bar.  Reservoir is Lower Velocity Red Unit in Lower Part of Tomogram.

Effect of Replacement of Original Pore Fluid by CO2 is indicated by

lowest velocities (dark red) within reservoir zone.  These are

not present on the baseline (pre-injection) images.
